Beijing World Horticultural Exposition Performance Square

Beijing Yanqing theater: 0.13 million sqm concrete, 0.67 million sqm steel roof, 26 cantilevered trusses, butterfly shape, 47m cantilever, 42.6-ton unit, 119×114m size, 18.5m roof height.

Manufacturer: HANGXIAO
SKU: 004
DELIVERY: Depending on the project situation
  • Products Description
  • Products specifications

Products Description

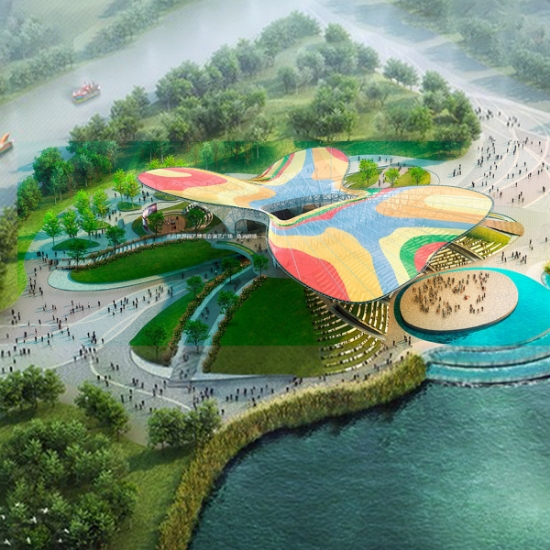

Beijing World Horticultural Exposition Performance Square - Gui Rui Theater
🏠 Roof Span:47 meters

——————

📍 Project Location & Function
Located in Yanqing District, Beijing, the theater functions as a performance center.

——————

📐 Area Details

  • Concrete part area: Approximately 0.13 million square meters
  • Steel roof projection area: About 0.67 million square meters

——————

🏗️ Roof Structure

  • Supported by 26 cantilevered steel trusses arranged in an umbrella shape, forming a butterfly-shaped outline
  • Maximum cantilever length: 47 meters
  • Heaviest unit weight: 42.6 tons
  • Maximum plan size: 119×114 meters
  • Roof height: Approximately 18.5 meters
